Shaft Sealing - BLR Bearing with Lantern Ring

The PackRyt® Sealing System is a unique stuffing box sealing arrangement that incorporates a bearing and flush channel system together. This replaces outdated packing/lantern ring/packing configurations. It can also replace hard-to-maintain mechanical seals. Our system brings shafts into concentricity and keeps them there, significantly increasing sealing reliability.

BEARING WITH INTEGRATED LANTERN RING
PackRyt BLR
PATENTED TECHNOLOGY

Don't be fooled by copy-cats with inferior designs and materials.

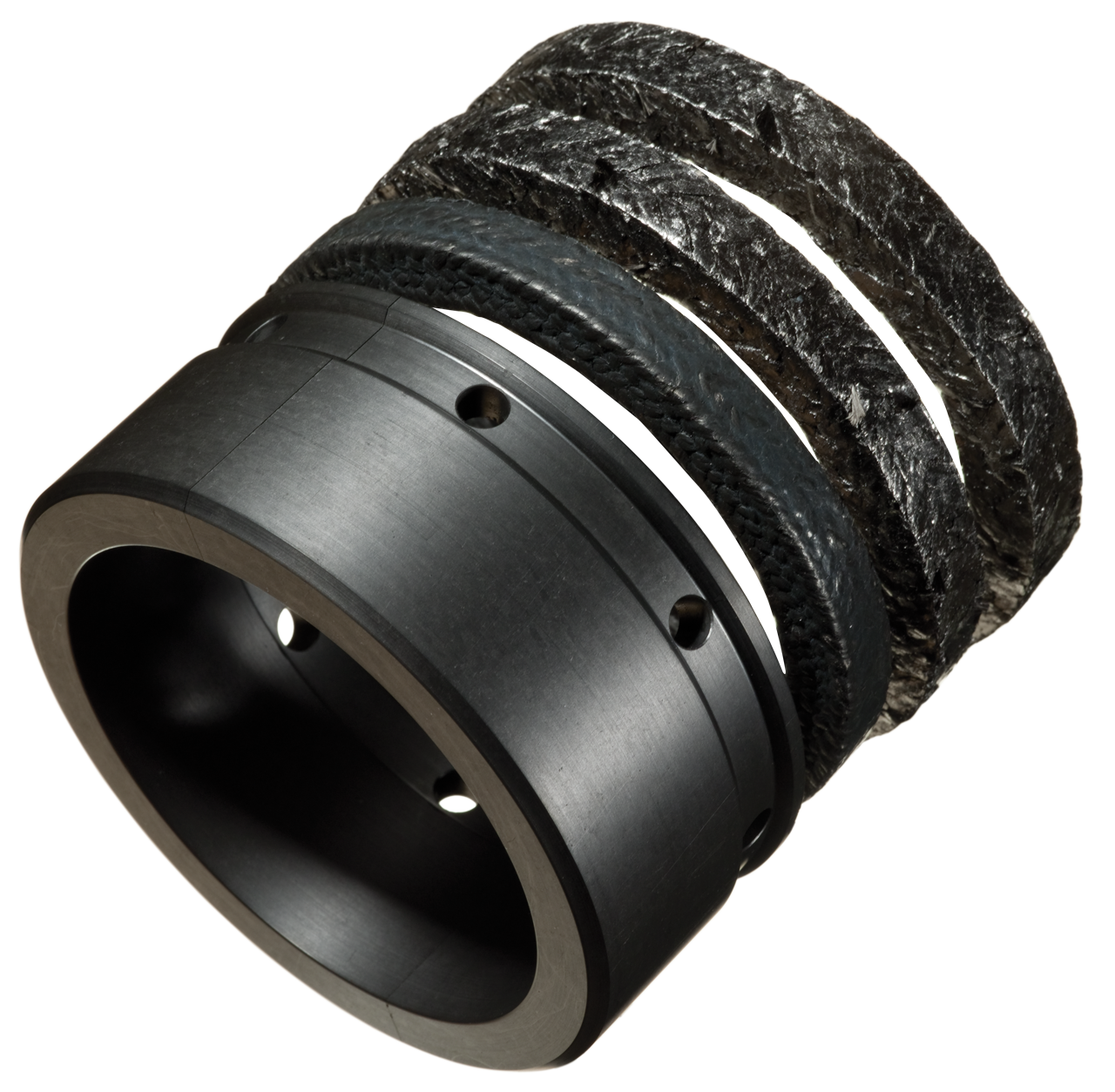

PackRyt BLR bearing

ADVANTAGES

  • Machined to close-clearance, the bearing stabilizes the shaft and prevents movement
  • Cavitation caused deflection is minimized
  • Results in minimal friction to sleeve/shaft
  • Minimal clearance sharply throttles solids, which allows the low-flush to keep them out of the shaft area
  • Flush use reduction averages over 65%
  • Flush flow remains constant
  • Automatically positions flush channel correctly, lantern ring cannot move past flush inlet
  • Little, or in some cases, no leakage from gland follower to atmosphere
  • Eliminates need to constantly adjust packing
  • As few as two rings of packing required
  • High performance, ultra pure heat conductive sealing rings can virtually eliminate sleeve/shaft wear

HIGH-PERFORMANCE THERMOPLASTIC BEARING BLOCK

  • Tremendous compressive strength
  • Impervious to most chemicals.
  • Virtually no dimensional growth up to 260ºC
  • Split, pinned, drilled and tapped for easy installation and removal.
  • Available as split bearing without lantern ring groove (Product Name: BRG).
PackRyt Split bearing in black and white material

WATCH DRAMATIC VIDEO: BEFORE AND AFTER

Questions? Ask our Engineers.

SealRyt Corp. is the industry leader in rotating shaft sealing technology. Our engineers have years of experience in the science of sealing. That's why we hold multiple patents on sealing technology. That's also why our products last longer, get better results, and simply seal better than any other products available.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

The root cause of most rotating equipment
failure is shaft movement

SealRyt's patented technology has proven it's ability to seal, support shafts, and increase reliability.

packryt-vibration illustration

BEFORE

Shaft movement in the stuffing box is unrestrained and is the root cause of equipment and sealing failures.

packryt bearing the load and stabilizing the shaft

After

The PackRyt Bearing System virtually eliminates shaft movement which increases both equipment and sealing reliability.

Case Studies

Dissolving Tank Agitators

A PackRyt® Sealing System was installed on 4 hard coated shaft tank agitator units and they have been running trouble free for over 2 years.

Previously these units had shaft change outs every year at a cost of approximately $80,000.00.

Stock Pumps

A PackRyt® Sealing System was installed on a 3175 stock pump having extreme leakage and maintenance issues. The PackRyt® eliminated the problems. All pumps and agitators on the paper machine and the pulp dryer are now being considered for change out.

Fiber Line Equipment

A chip chute pump was being re-packed every 2 months and now with the PackRyt® Sealing System installed it has one annual packing change. The bearing has had a life span of over 5 years.

We have compiled a list of life span results from different equipment the PackRyt BLR has been installed.

TESTIMONIALS

"Your product has performed as advertised and the service by your team has exceeded what was expected. Great job by everyone at SealRyt."
– Steve C., Maintenance/Shutdown Planner
"The PackRyt system works better than every other option that we tried."
– Pulp Mill Supervisor
"A good product, in the right application, that has served the mill well..."
– Andy B, Maintenance Supervisor
Read More Testimonials
